TYPE 600

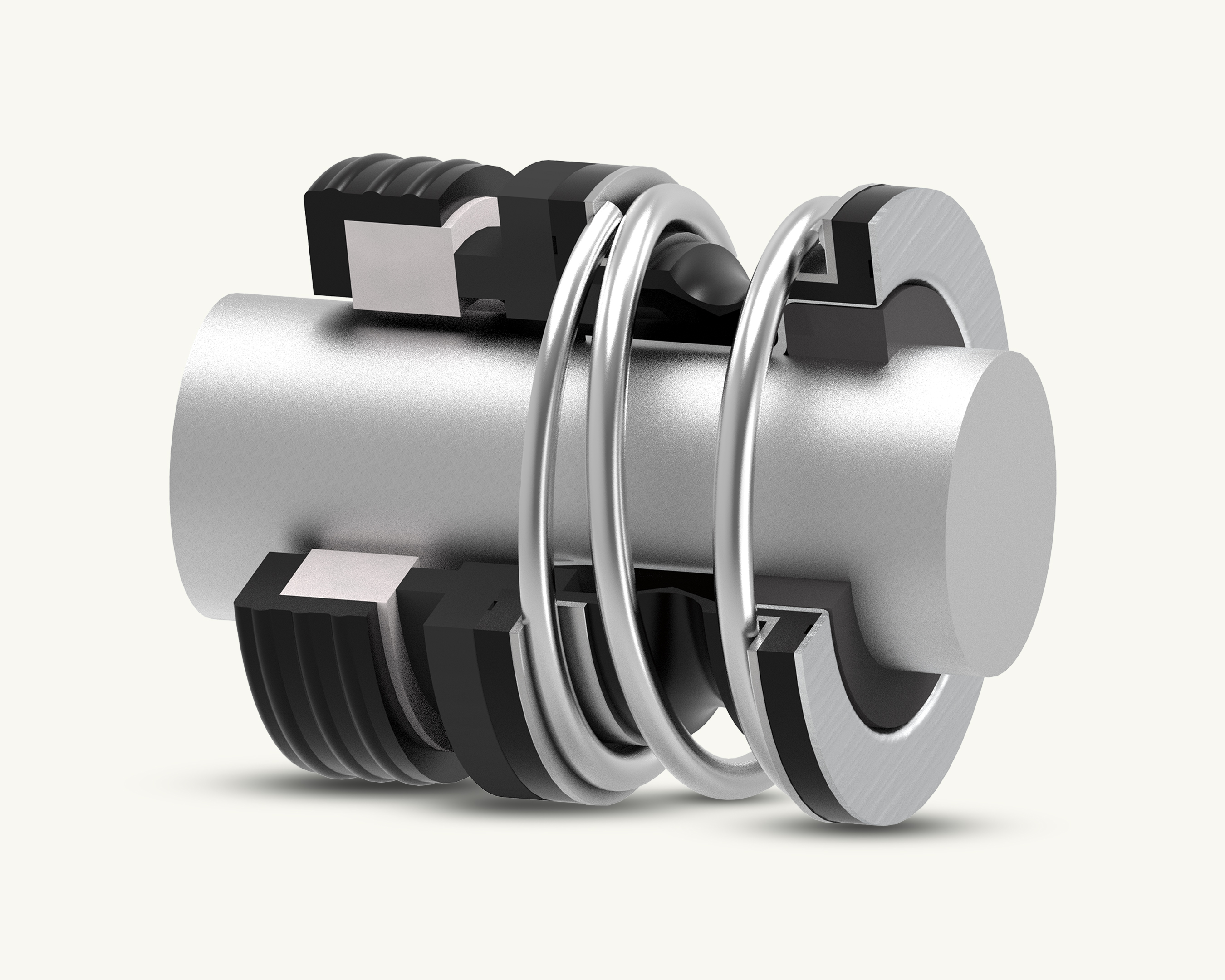

The Sealergy Type 600 is a radially compact elastomer bellows design, highly suitable for water pump applications.
The Sealergy Type 600 is a radially compact elastomer bellows design, highly suitable for water pump applications. The design features an easy-to-install construction with a compact working length intended to suit common water pump seal chambers. The sealing drive is provided by the elastomer drive grommet tightly gripping the shaft from a contact point under the coil end, providing a bi-directional "non-pusher" performance that minimises shaft fretting. Supplied with a Sealergy Type 600 boot-mounted stationary to suit common imperial housing sizes, the Sealergy Type 600 is highly suited to low-pressure light water circulation duties. Effective and easy-to-install design. Highly suited to low-pressure domestic and municipal water pump duties. Sealergy Seals assembly provides a more integrated, robust, and resilient product compared to many market alternatives. The ribbed profile to the sealing contact point of the stationary provides optimal grip into stationary recess with a sub-optimal surface finish.
- Pressure: Up to 6 bar (87 psi)
- Non-Pusher: Yes
- Bi-Directional: Yes
- Elastomer Bellow: Yes
- Equivalent to John Crane Type 6,Avon Type S: Yes
| Rotary Face | Stationary Face | Complete Seal Code |
|---|---|---|
| Regular Carbon | Ceramic | CV |
| Resin Carbon | Silicon Carbide | RV |
| Silicon Carbide | Silicon Carbide |
| Material | Minimum | Maximum |
|---|---|---|
| High Nitrile / Bhuna-N | -30°C | 120°C |
| EPEM | -30°C | 140°C |
| Viton/FKM | -30°C | 180°C |

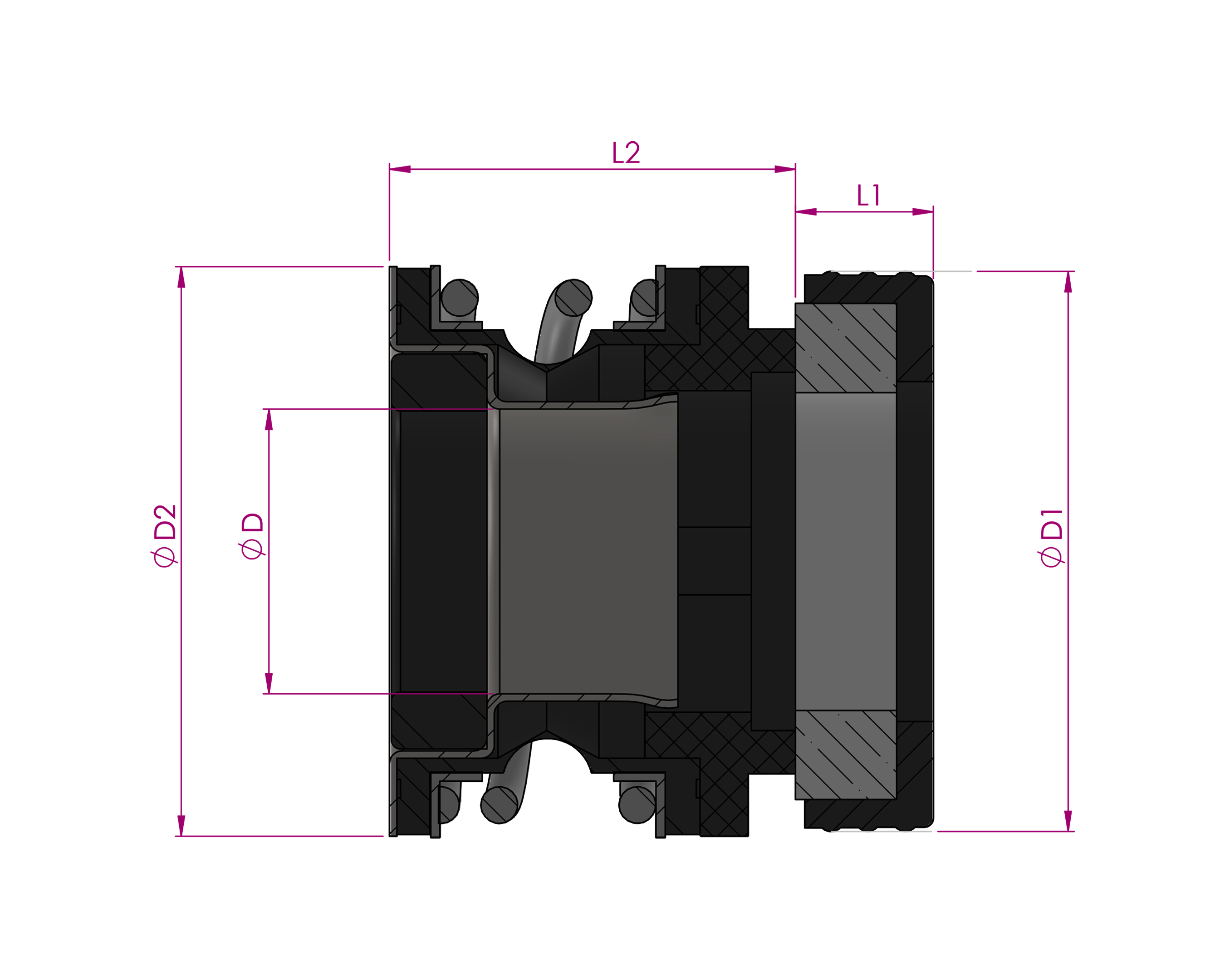

Dimensions
| OPEN | D1 | D2 | L1 | L2 |
|---|---|---|---|---|
| 10MM | 25.9 | 25.5 | 7.65 | 18.4 |
| 12MM | 25.9 | 25.5 | 7.65 | 18.4 |
| 1/2" | 25.9 | 25.5 | 7.65 | 18.4 |
| 14MM | 30.3 | 30 | 7.6 | 20.8 |
| 15MM | 30.3 | 30 | 7.6 | 20.8 |
| 16MM | 30.3 | 30 | 7.6 | 20.8 |
| 5/8" | 30.3 | 30 | 7.6 | 20.8 |
| 18MM(D34) | 36.8 | 34.5 | 10 | 23.3 |
| 19MM(D34) | 36.7 | 34 | 10 | 24 |
| 20MM(D36) | 38.3 | 36 | 10 | 23 |
| 22MM | 42.4 | 44 | 9.7 | 28 |
| 24MM | 42.4 | 44 | 9.7 | 28 |
| 25MM | 42.5 | 44 | 9.7 | 28 |
| 28MM | 46.4 | 48.3 | 11.3 | 30.8 |
| 28MM(AVO N) | 46.4 | 48.3 | 11.3 | 30.8 |
| 30MM | 52.65 | 52.35 | 11 | 32.85 |
| 32MM | 52.65 | 52.35 | 11 | 32.85 |
