Type 601

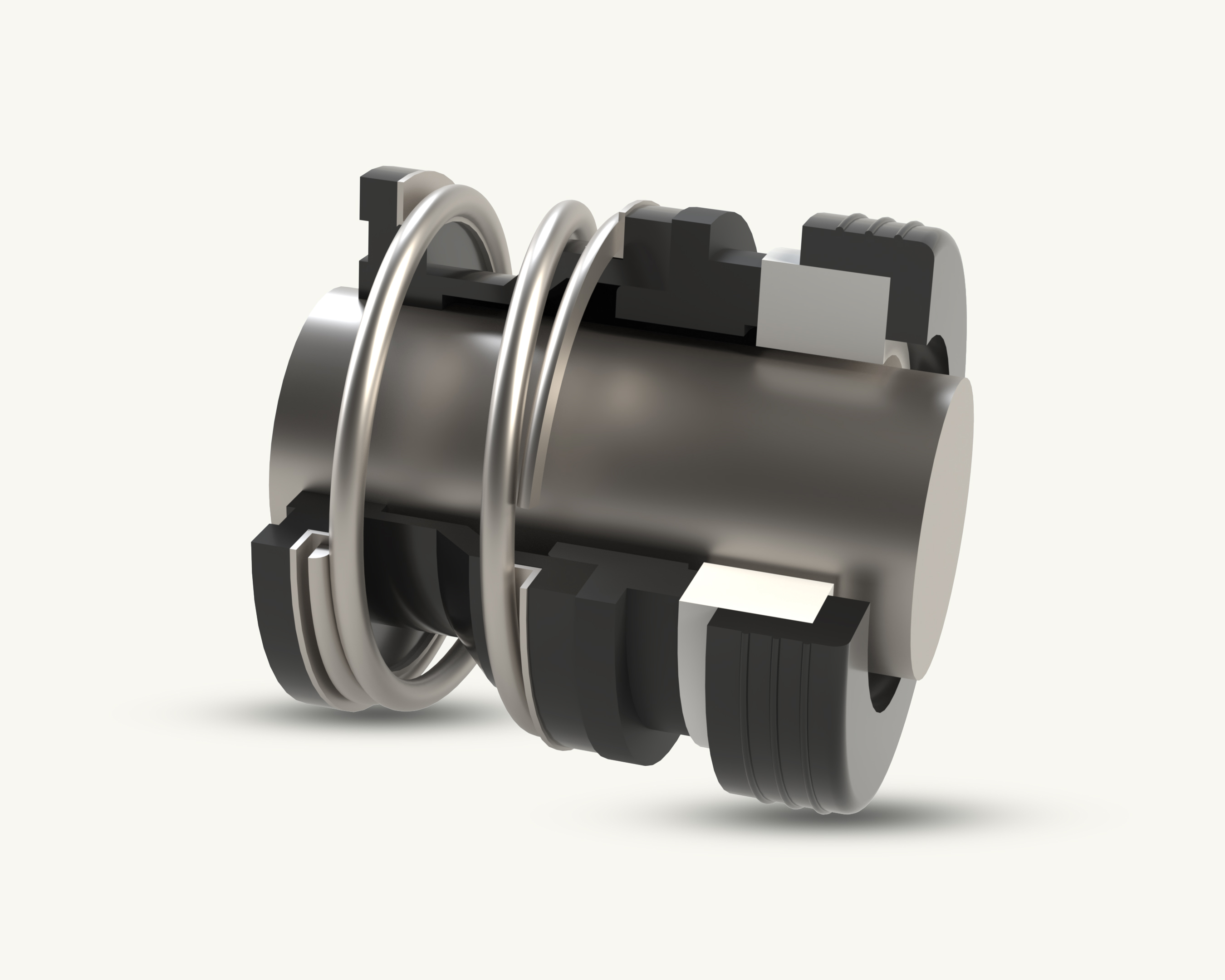

The Sealergy Type 601 is a radially compact elastomer bellows design, highly suitable for water pump applications.
About this Product
Why Choose the Sealergy Seals Type 601? Effective and easy-to-install design. Highly suited to low-pressure domestic and municipal water pump duties.
Technical Features
- Pressure: Up to 4 bar (87 psi)
- Design: Non-Pusher Bi-Directional
- Bellows: Elastomer Bellow
- Equivalent to: John Crane Type 6A,Avon Type F
Standard Sealface Combinations
| Rotary Face | Stationary Face | Complete Seal Code |
|---|---|---|
| Regular Carbon | Ceramic | CV |
| Resin Carbon | Silicon Carbide | RV |
Elastomer Temperature Capabilities
| Material | Minimum | Maximum |
|---|---|---|
| High Nitrile / Bhuna-N | -30°C | 120°C |
| EPEM | -30°C | 140°C |
| Viton/FKM | -30°C | 180°C |

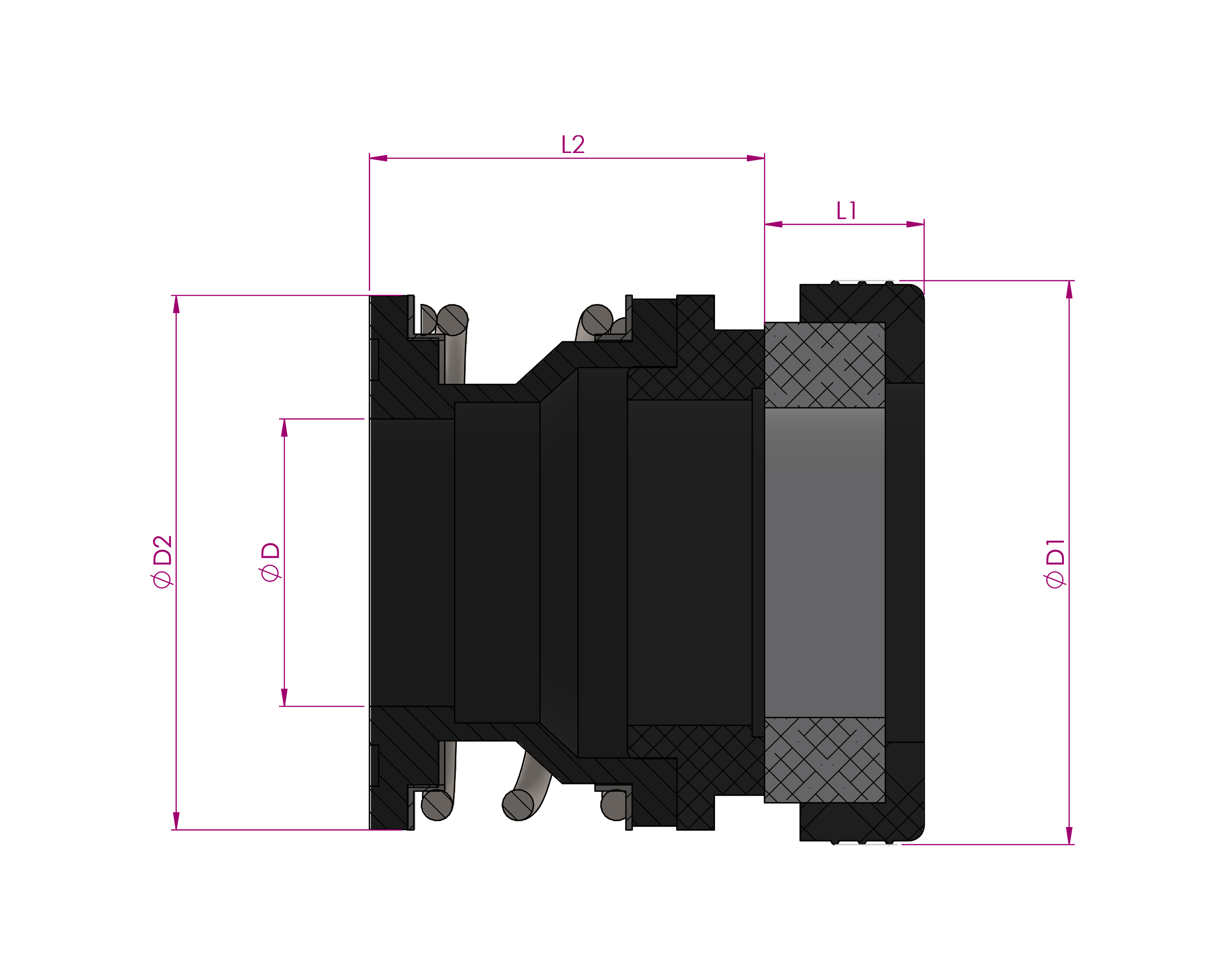

Dimensional Data
Dimensions
No dimensions available.
