TYPE 560M

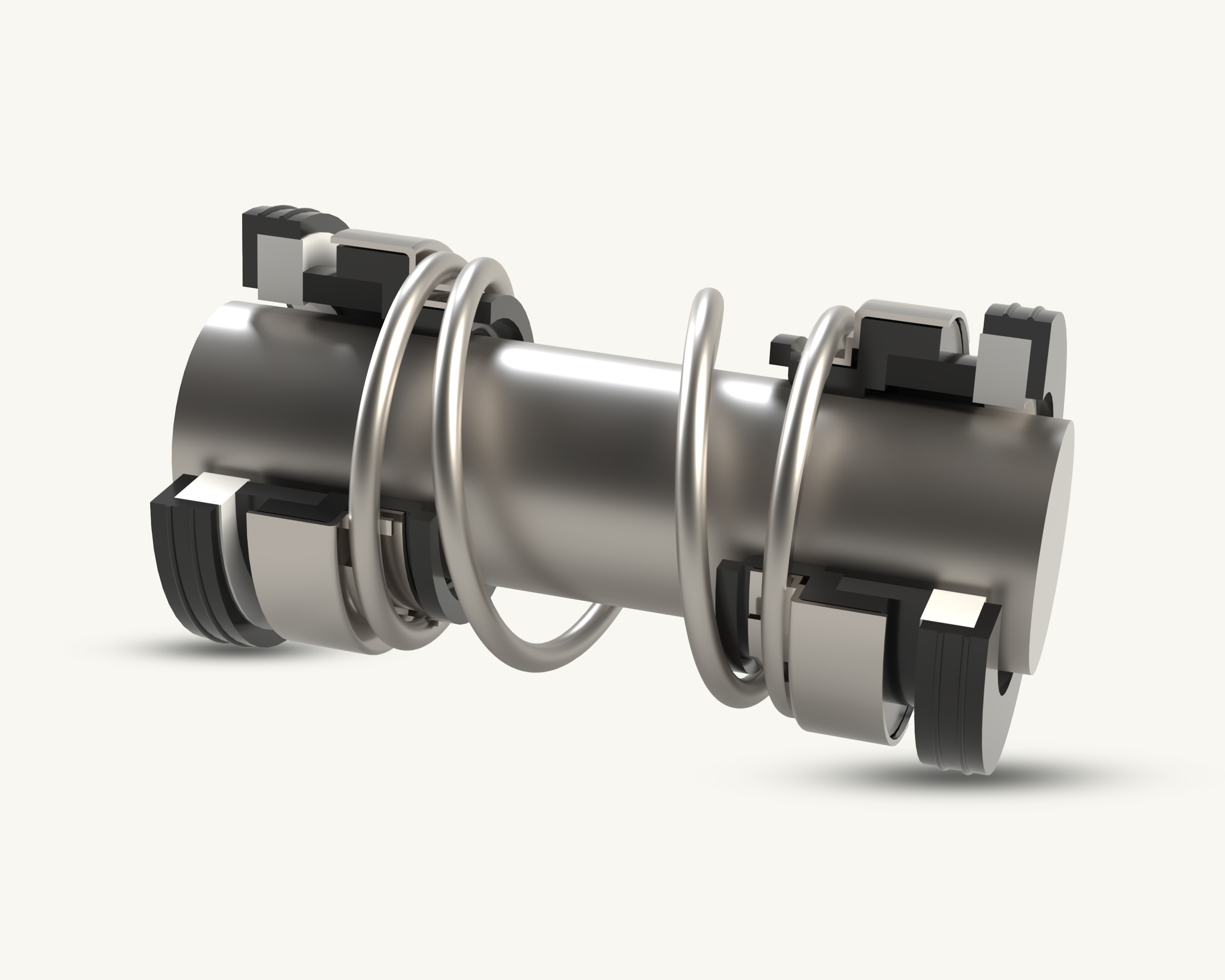

A "Sealergy Seals Type Double Robin MG1" is a double mechanical seal that uses an elastomer bellows design and is compatible with the industry-standard Burgmann MG1 seal type. The "Double Robin" designation specifies that it is a dual-seal configuration, which offers enhanced safety and reliability over a standard single seal. This type of seal is used for demanding industrial applications where reliability is critical. Key uses include: A double mechanical seal uses two sets of sealing faces to contain a fluid or gas. This design is ideal for hazardous, toxic, or flammable fluids, as it provides a backup in case the primary seal fails, preventing leakage into the atmosphere. A buffer or barrier fluid is circulated between the seals, which lubricates the seal faces and removes heat, reducing wear and tear. This process extends the seal's operational life and minimizes the risk of dry running, which can cause premature failure. The seal is designed to handle corrosive and abrasive media, which is common in applications like wastewater treatment and the pulp and paper industry. The barrier fluid protects the seal faces from damage caused by the pumped fluid itself. The MG1 design is independent of the shaft's direction of rotation, making it a versatile and reliable choice for various pumps and rotating equipment. It is suitable for a wide range of industries, including chemical processing, oil and gas, pharmaceuticals, and wastewater treatment. While the initial cost may be higher than a single seal, the increased durability and reduced risk of downtime or equipment damage lead to lower maintenance and operational costs over time.

• Pressure: Up to 6 bar (87 psi).
• Non-Pusher.: Yes
• Bi-Directional.: Yes
• Elastomer Bellow.: Yes
• Equivalent to John Crane Type 6, Avon Type S.: Yes
