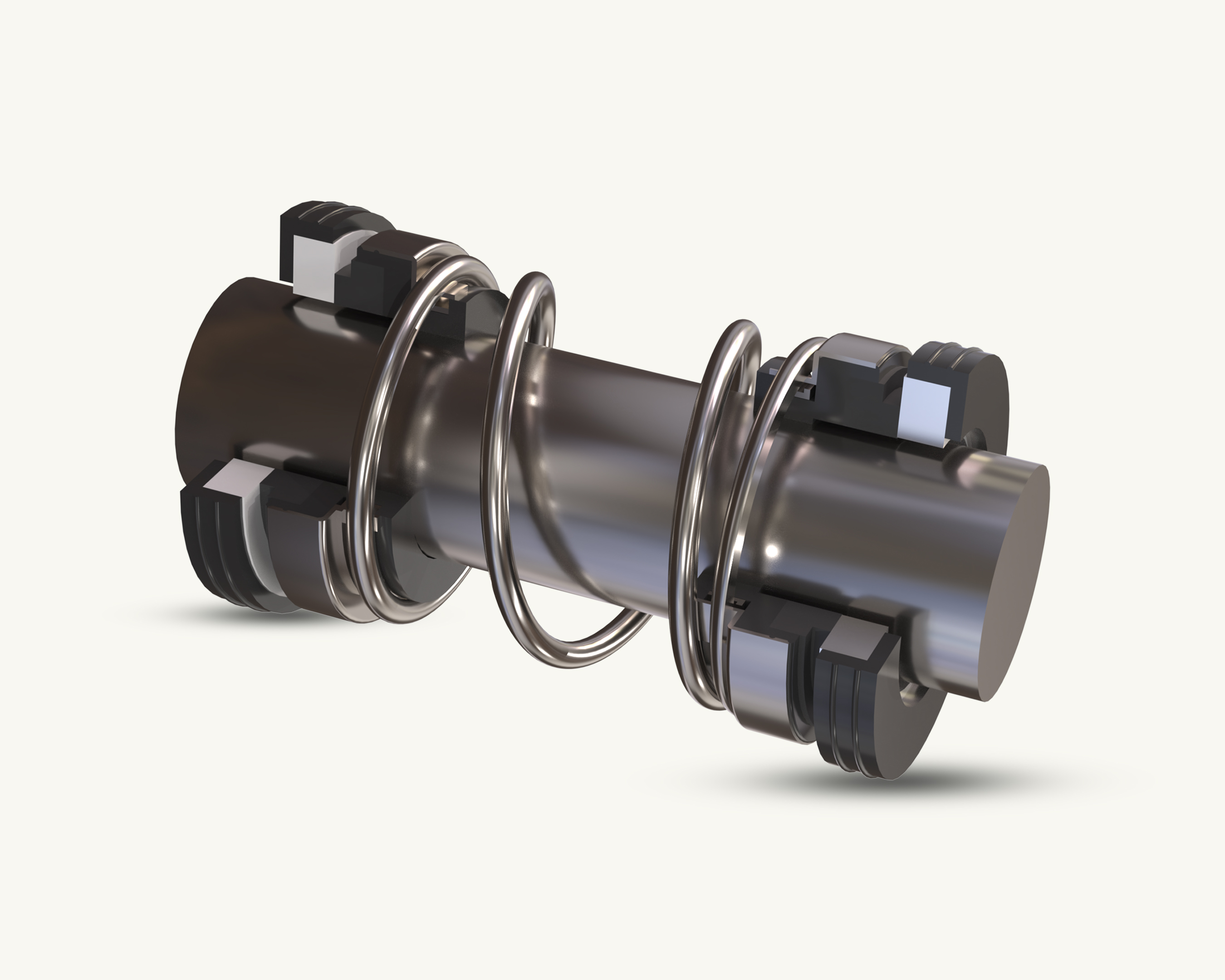

TYPE 560D

Dual seal in back-to-back arrangement. Good chemical resistance. Suitable for toxic or hazardous liquids.

About this Product

The ED560 is a dual seal in a back-to-back arrangement with an EA560 base. Therefore, the seal combines the advantages of the EA560 with the advantages of a dual seal. The dual-seal design offers enhanced safety and reliability, making it suitable for sealing toxic or hazardous liquids, as it helps prevent leakage into the environment. It is a spring-loaded, balanced seal that is suitable for use in medium-pressure applications. The seal is designed to handle fluids with solids and has good chemical resistance, combining the advantages of the EA560 single seal with the added safety of a dual seal. The seal can be configured with a variety of face materials and elastomers to suit different fluids and operational conditions. It is widely used in industrial pumps, including those for water, wastewater, chemicals, and oils.

Technical Features

Dual seal: Yes
Good chemical resistance and ability to handle solids: Yes
In-house manufactured sliding parts: Yes

Standard Sealface Combinations

Rotary Face	Stationary Face	Complete Seal Code
Ceramic	Regular Carbon	VCVC
Ceramic	Resin Carbon	VRVR
Ceramic	Regular Carbon	VCQQ
Silicon Carbide	Silicon Carbide	QQQQ

Elastomer Temperature Capabilities

Material	Minimum	Maximum
High Nitrile / Bhuna-N	-30°C	120°C
EPEM	-40°C	140°C
Viton/FKM	-30°C	180°C

Dimensional Data

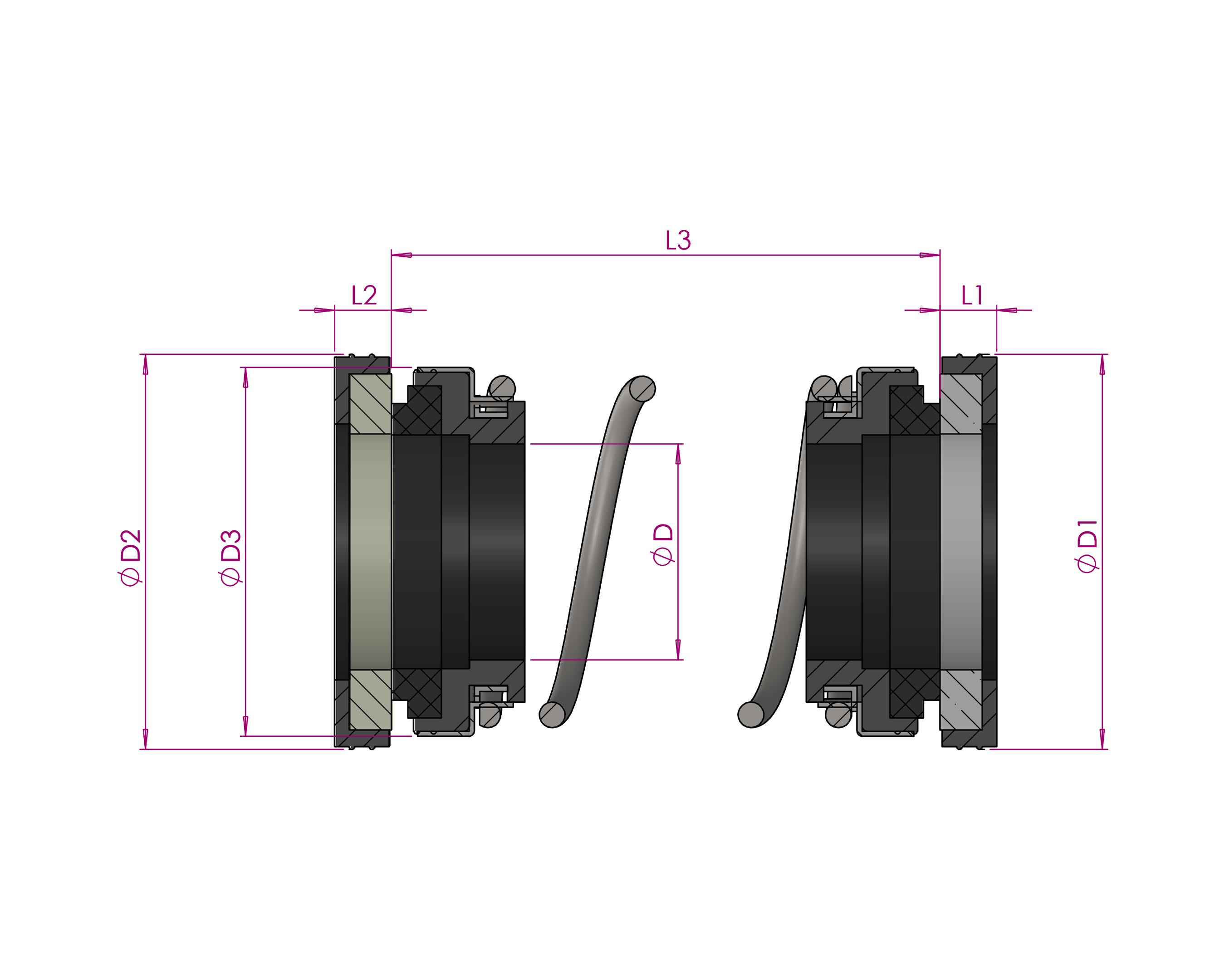

Dimensions

DOUBLE ROBIN MG6 MOULD	D1	D2	L1	L2	D3	L3
20MM	38.55	33.2	9.9	52.5	44.35	8.4
25MM	44.3	39.4	8.5	49.8	50.6	8.25
30MM	50.55	45.45	9.3	53.3	57.5	8.5
35MM	50.8	48.5	8	66.3	57.9	9.9
