TYPE M2N

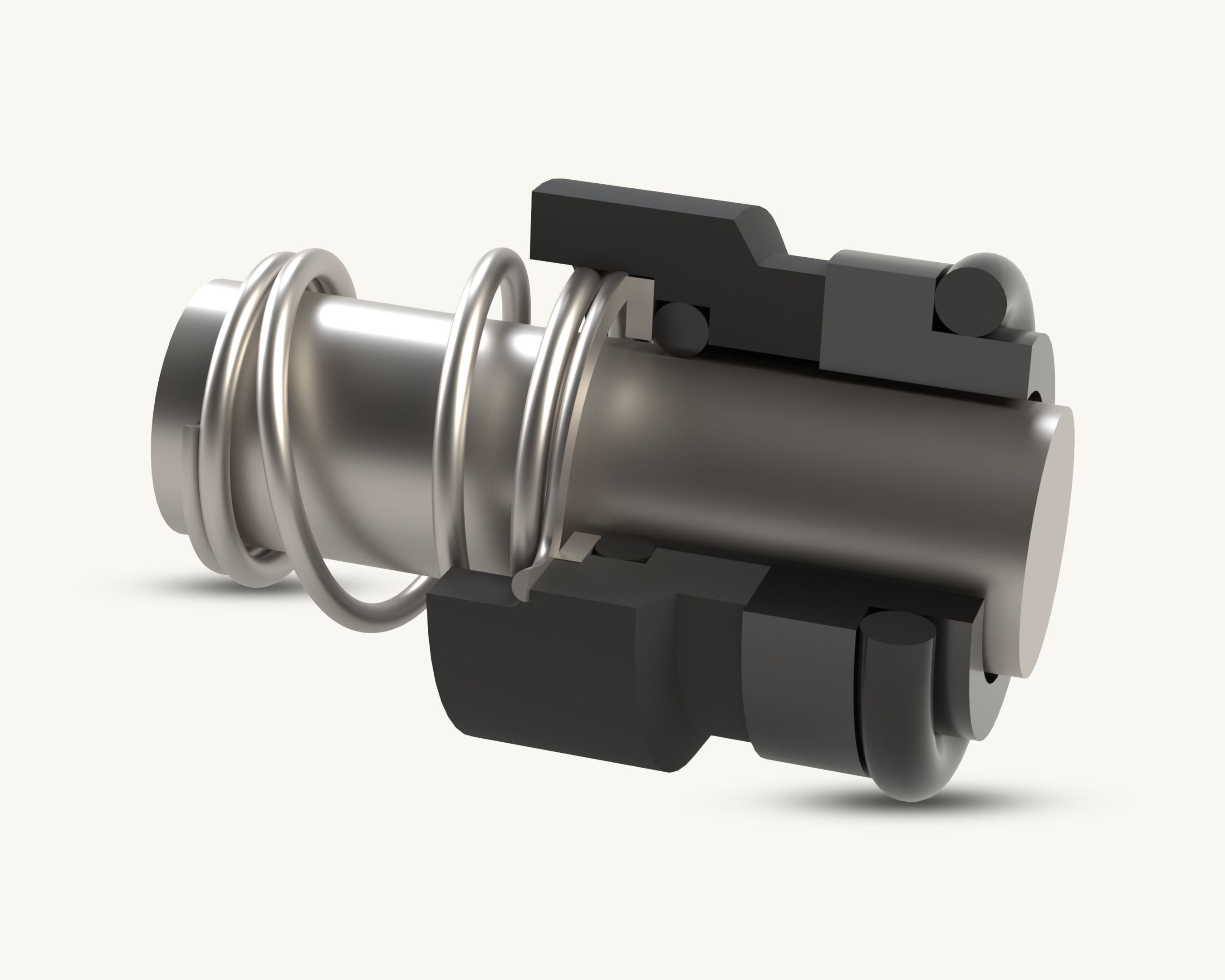

The Sealergy Seals Type M2N is a mechanical seal that is a replacement for the industry-standard Burgmann M2N. This type of seal is a single, unbalanced seal with a conical spring. It is known for being a cost-effective and dependable solution for a wide range of applications, particularly in water systems and other general-duty industrial uses. As a widely recognized industry standard, the M2N is easily interchangeable with seals from many other manufacturers, which simplifies procurement and replacement. The M2N is an economical seal that is easy to install and maintain. Its simple design is free of set screws, which helps prevent damage to the shaft. This simplicity contributes to reduced downtime and lower overall costs. The single, conical spring design of the M2N provides reliable sealing and is less prone to clogging than multi-spring designs. This makes it a good choice for applications that may contain some particulate matter. Depending on the materials used for its components, the seal can handle a range of operating conditions, including pressures up to 10 bar and temperatures from -20 °C to 140 °C. As a widely recognized industry standard, the M2N is easily interchangeable with seals from many other manufacturers, which simplifies procurement and replacement. The M2N is widely used in industries such as pulp and paper, water and wastewater technology, and building services. It is particularly suited for circulating pumps, heating systems, compressors, mixers, and blenders.

• Pressure: Up to 10 bar (145 PSI).
• Unbalanced.: Yes
• Conical spring rotating.: Yes
• Direction of rotation.: Yes
