TYPE M7
M7N multi-spring mechanical seal. Replacement for Burgmann M7N. Multiple springs for uniform face loading. Balanced design for high-pressure applications.
Why Choose M7N? Multiple springs provide uniform pressure reducing face distortion. Balanced design handles higher pressures with less wear. Versatile for pumps and mixers.
- Design: Multiple Springs, Balanced
- Direction: Independent of direction of rotation
- Equivalent: Burgmann M7N
| Rotary Face | Stationary Face | Complete Seal Code |
|---|---|---|
| Carbon Graphite | Silicon Carbide | BQ |
| Silicon Carbide | Silicon Carbide | |
| Tungsten Carbide | Tungsten Carbide | UU |
| Material | Minimum | Maximum |
|---|---|---|
| High Nitrile / NBR | -30°C | 120°C |
| EPDM | -40°C | 140°C |
| Viton/FKM | -30°C | 180°C |

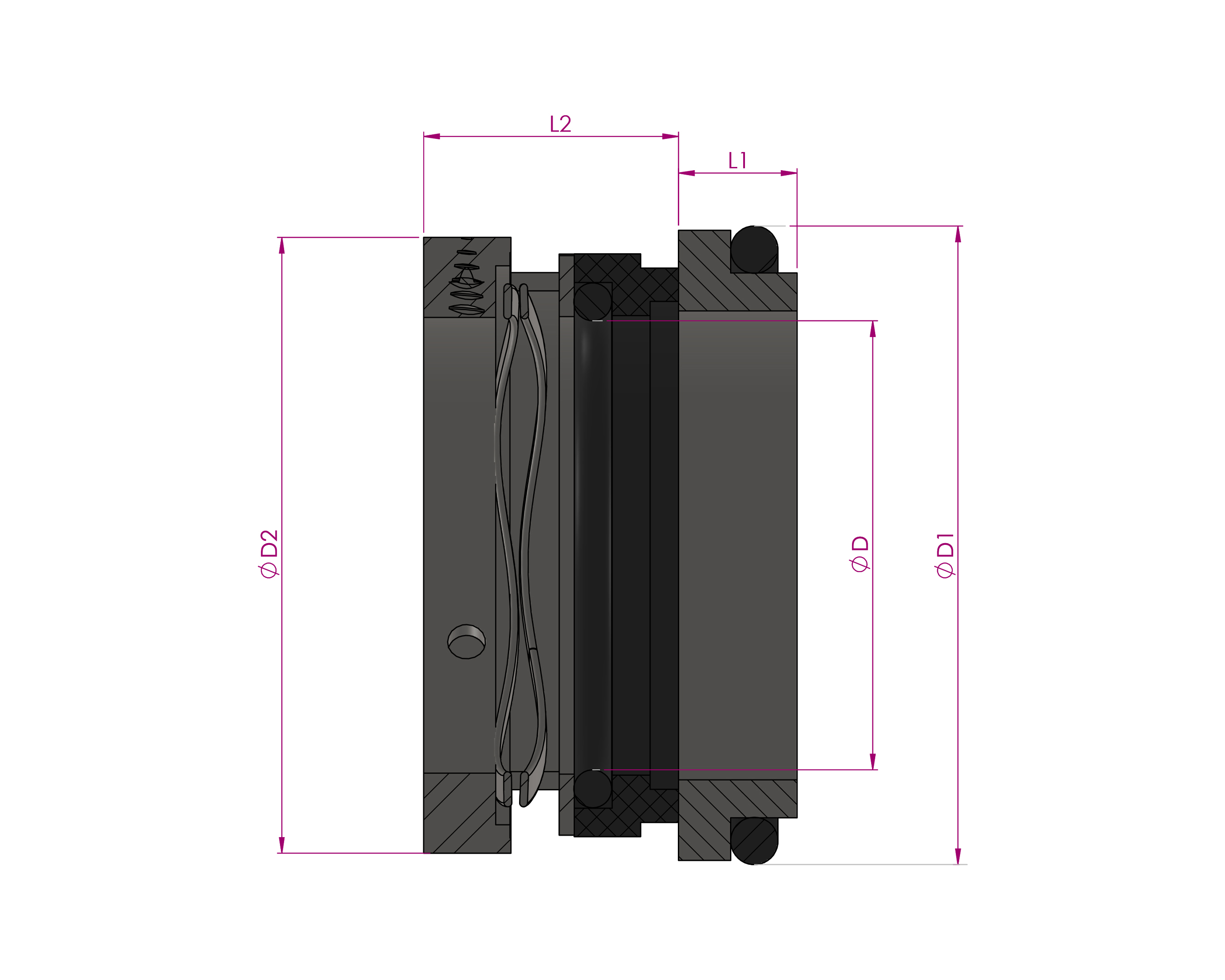

Dimensions
No dimensions available.
