S2

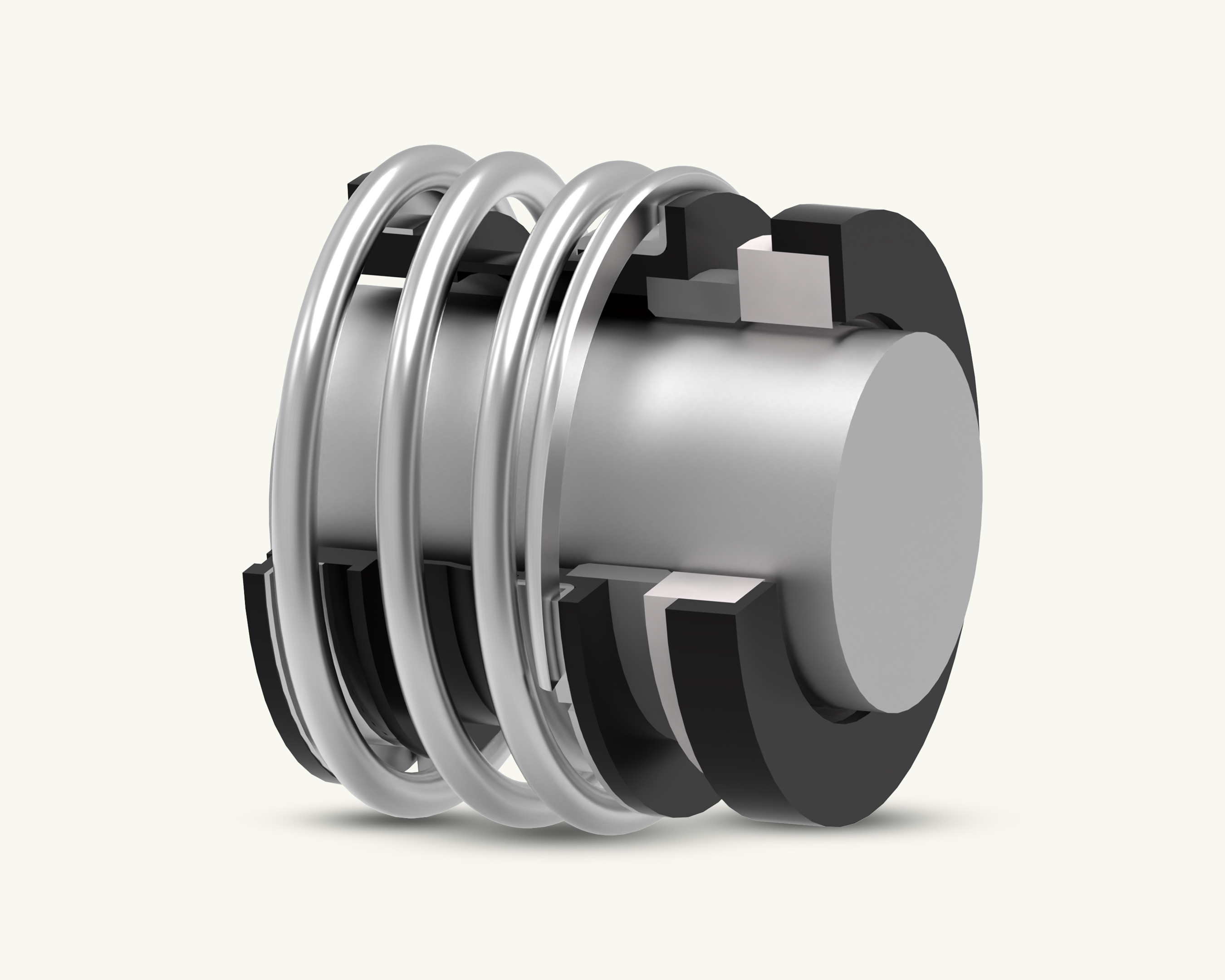

The Sealergy Seals Type MG1 is a mechanical seal with an elastomer bellows and a single spring design, and it is interchangeable with the industry-standard Burgmann MG1 seal. This seal is a common and versatile choice for general-purpose applications across many industries. The MG9 seal is designed to meet industrial standards such as DIN24960 and EN12756. It is also available in both metric and inch sizes. The MG9 is a highly versatile seal used in industries like water and wastewater technology, pulp and paper, chemical, and food processing. It is suitable for various types of rotary equipment, including centrifugal pumps, piping pumps, and sewage pumps, handling a range of media such as oil, water, sewage, and weak corrosive liquids. The MG9 features an elastomer bellows and an independent spring design that prevents torsion and allows the seal to handle axial movement and compensate for shaft run-out. This design contributes to its reliability and longevity. The MG9 has a compact structure with a small outer diameter, which allows it to fit into tight installation spaces. It is also designed for easy installation and maintenance, which can reduce downtime and lower overall costs. The seal offers a wide selection of materials for its components, such as different seal faces (carbon, ceramic, silicon carbide), elastomers (NBR, EPDM, FKM), and metal parts (stainless steel). This allows it to be customized to meet specific operating conditions, including a wide temperature range and different pressure levels.

• Pressure: Up to 12 bar (170 psi).
• Non-Pusher: Yes
• Bi-Directional: Yes
• Elastomer Bellow: Yes
• Unbalanced: Yes
