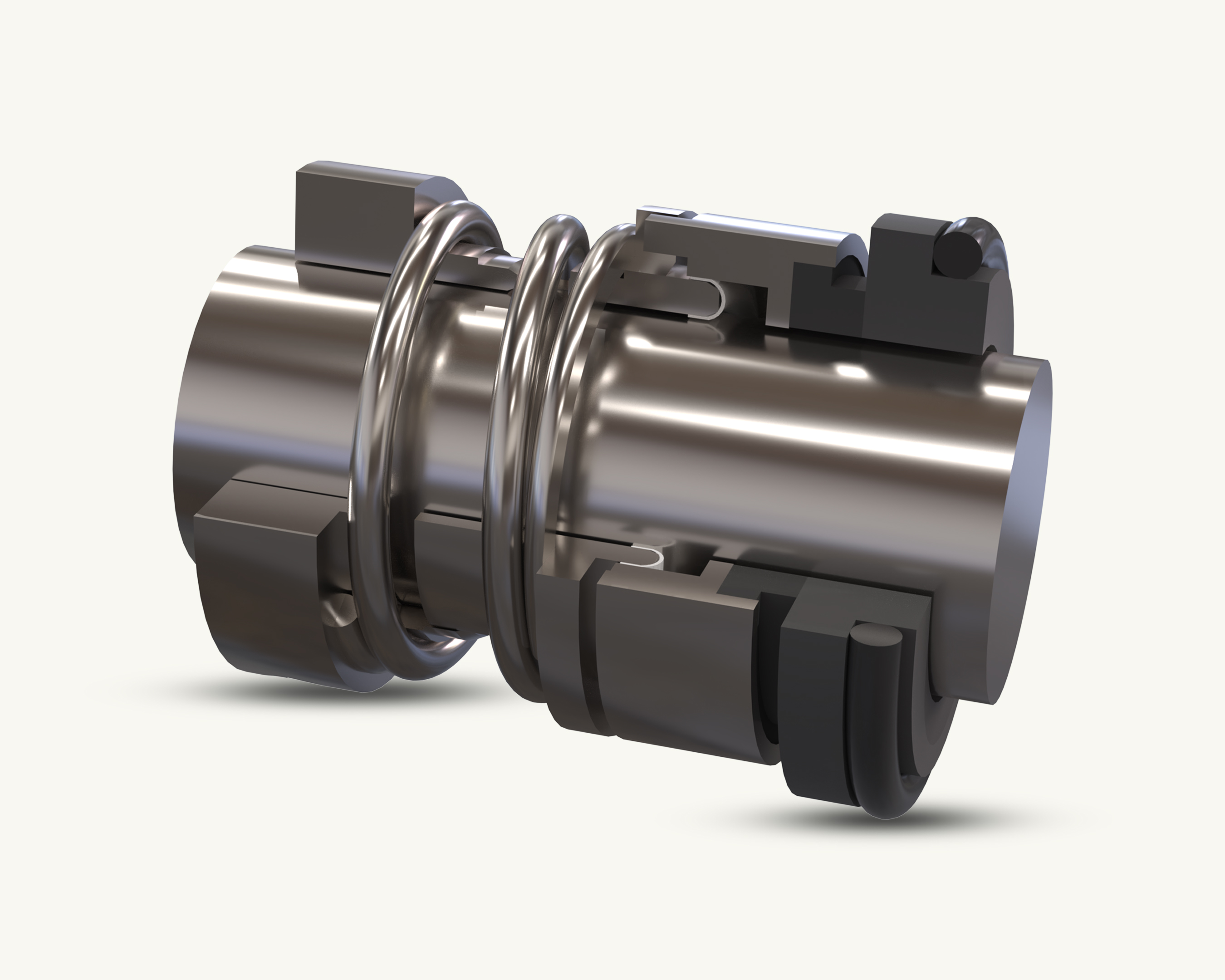

TYPE LPS 150
Single spring conical diaphragm seal. Suitable for light to medium duty applications. Used in domestic and municipal water pump duties.
About this Product
Why Choose LPS 150? Simple single spring design. Easy to install and maintain. Suitable for clean water, glycols and light chemical service.
Technical Features
- Design: Single Spring, Conical Diaphragm
- Balance: Unbalanced
- Application: Light to medium duty pumps
Standard Sealface Combinations
| Rotary Face | Stationary Face | Complete Seal Code |
|---|---|---|
| Regular Carbon | Ceramic | CV |
| Resin Carbon | Silicon Carbide | RV |
| Silicon Carbide | Silicon Carbide |
Elastomer Temperature Capabilities
| Material | Minimum | Maximum |
|---|---|---|
| High Nitrile / NBR | -30°C | 120°C |
| EPDM | -40°C | 140°C |
| Viton/FKM | -30°C | 180°C |

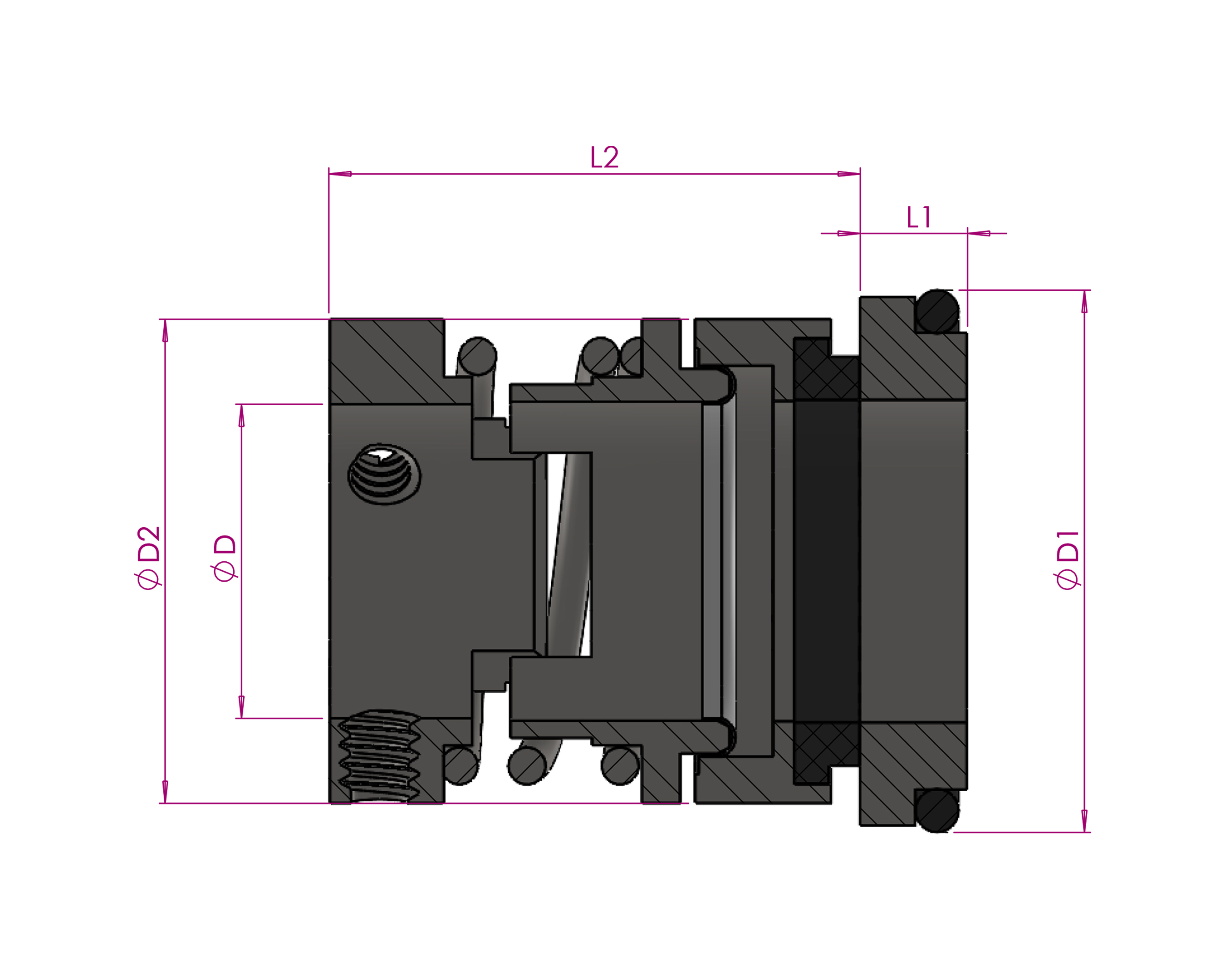

Dimensional Data
Dimensions
No dimensions available.
