TYPE SSP

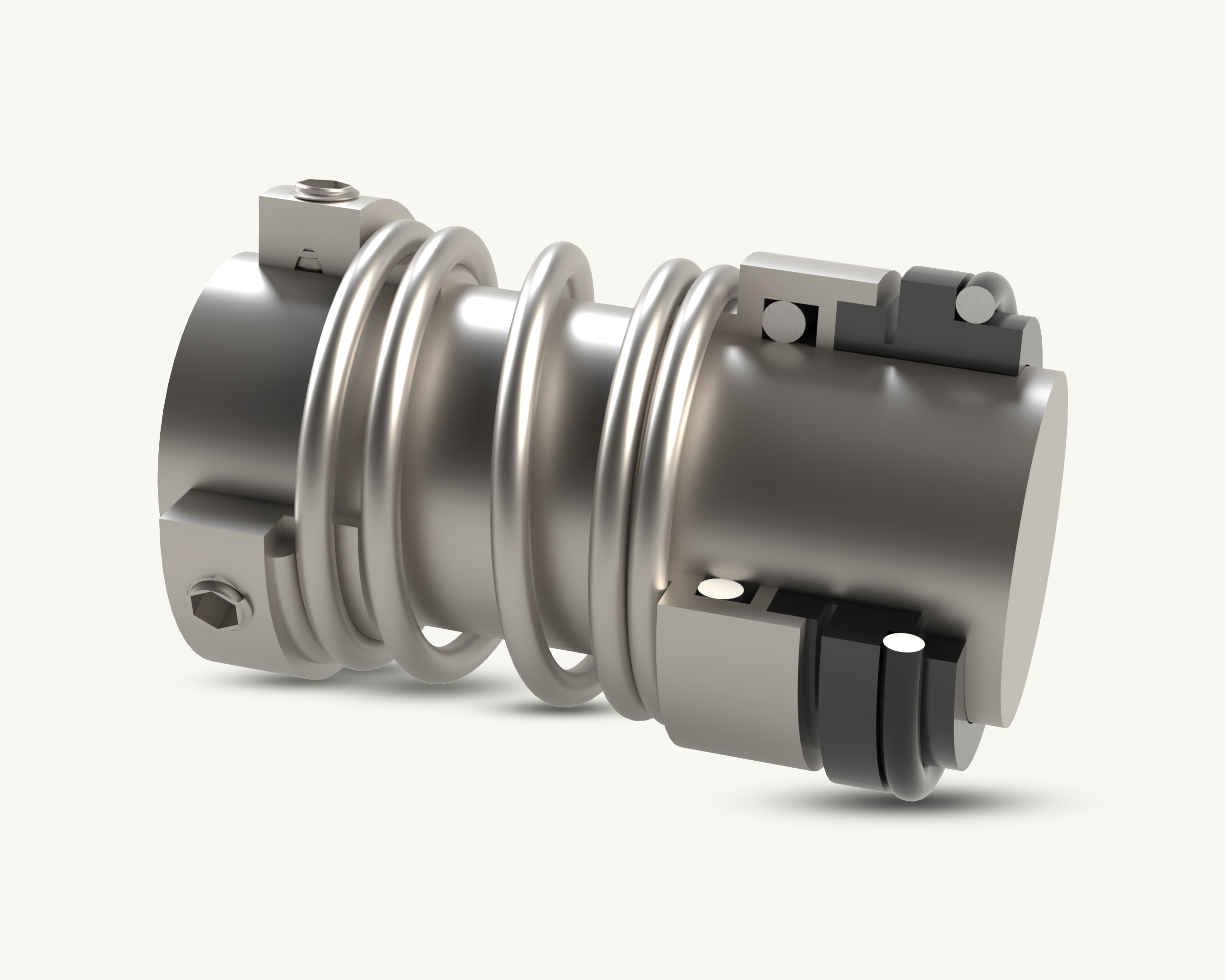

SSP single spring pusher seal. Conical spring design. Suitable for water pumps, circulators and light industrial applications.
About this Product
Why Choose SSP? Reliable single spring design with minimal parts. Easy installation and low maintenance. Economical sealing solution for general pump applications.
Technical Features
- Design: Single Conical Spring, Pusher type
- Balance: Unbalanced
- Application: Water pumps, circulators, light industrial
Standard Sealface Combinations
| Rotary Face | Stationary Face | Complete Seal Code |
|---|---|---|
| Ceramic | Regular Carbon | VC |
| Ceramic | Resin Carbon | VR |
| Silicon Carbide | Silicon Carbide |
Elastomer Temperature Capabilities
| Material | Minimum | Maximum |
|---|---|---|
| High Nitrile / NBR | -30°C | 120°C |
| EPDM | -40°C | 140°C |
| Viton/FKM | -30°C | 180°C |

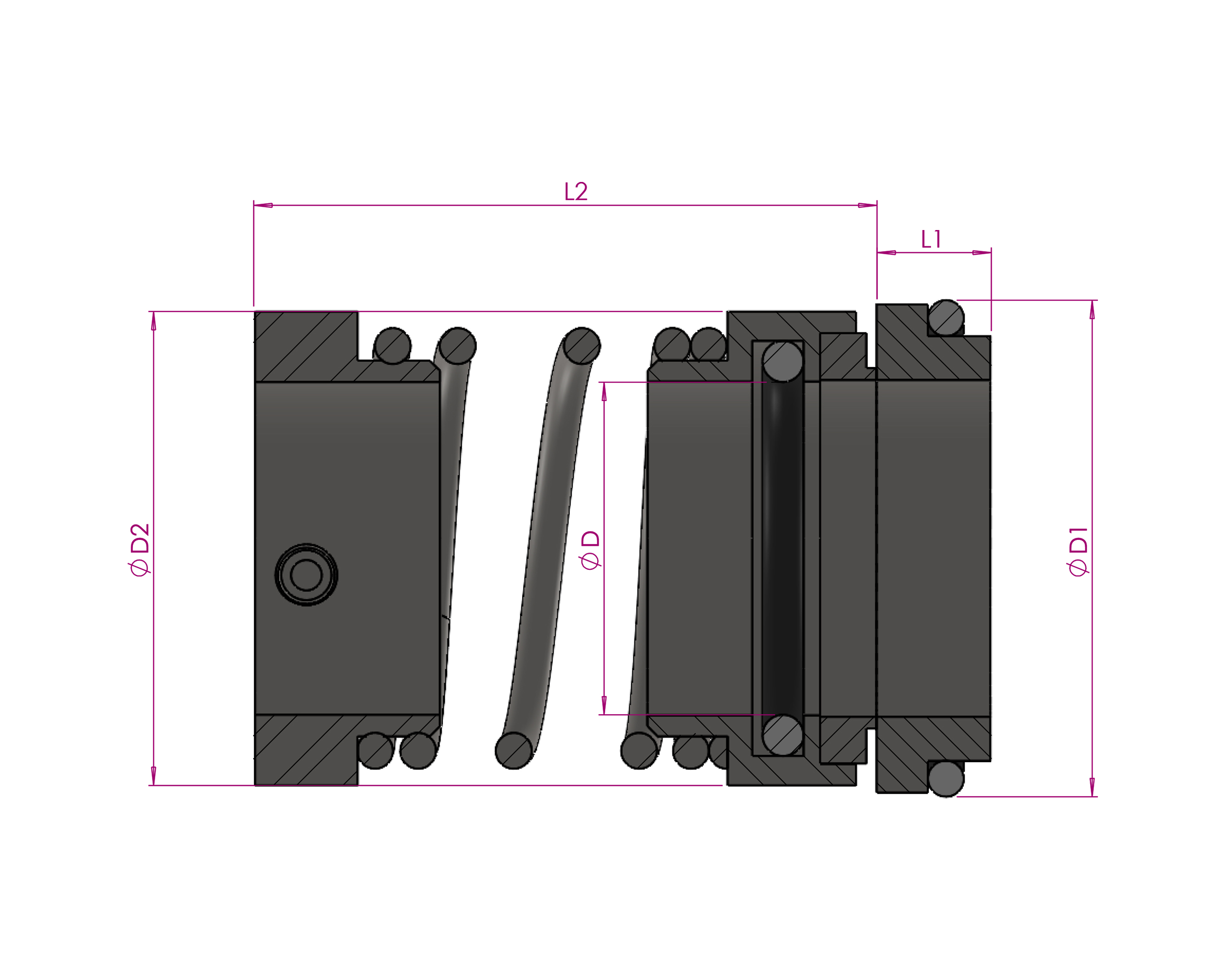

Dimensional Data
Dimensions
No dimensions available.
