TYPE SUB

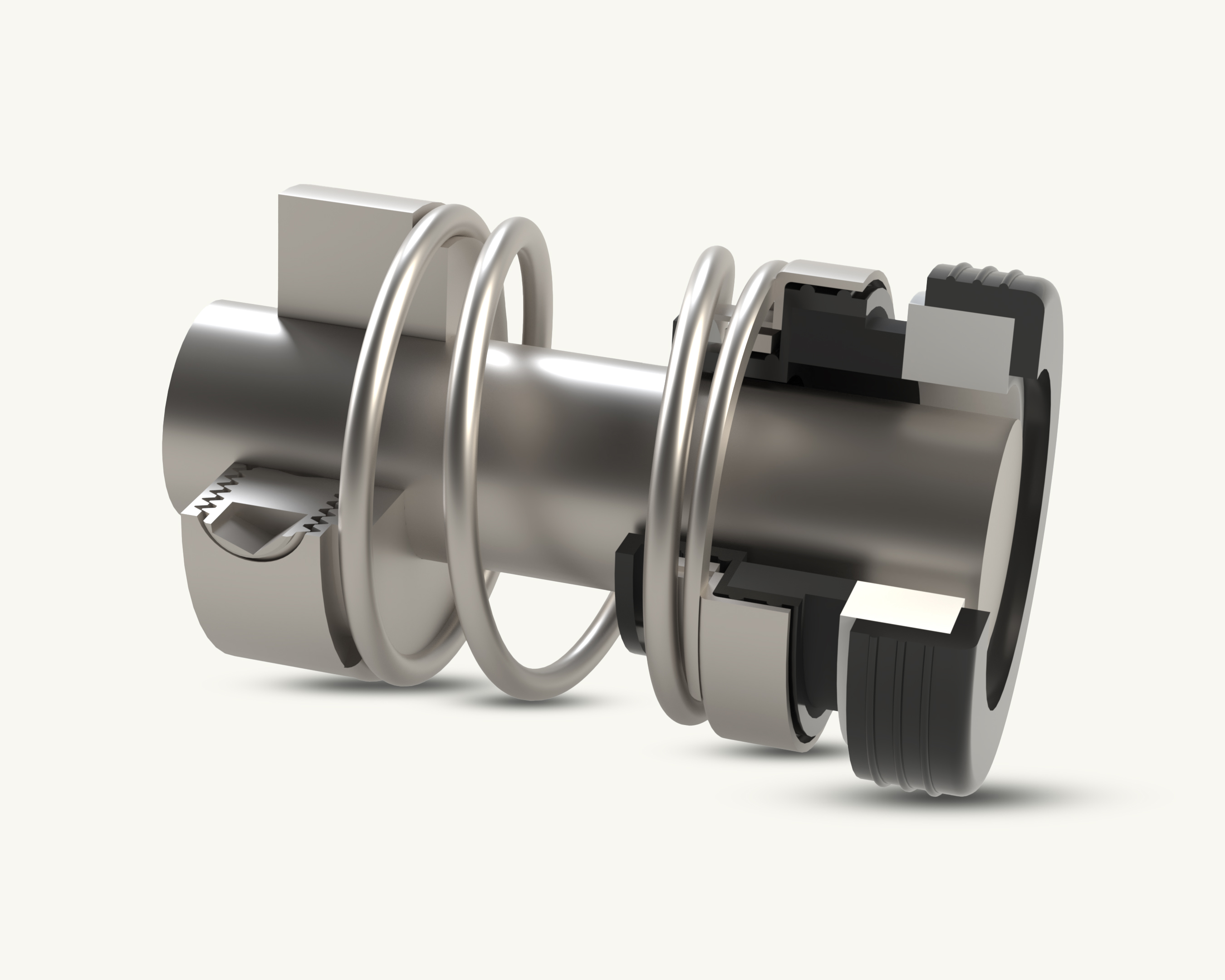

SUMO elastomer bellows mechanical seal. Non-pusher bi-directional design. Compact working length for water pump seal chambers.
About this Product
Why Choose Sumo Bellow? Elastomer bellows provides bi-directional non-pusher performance. Compact design fits common water pump chambers. Minimizes shaft fretting.
Technical Features
- Design: Non-Pusher, Bi-Directional
- Bellows: Elastomer Bellow
- Balance: Unbalanced
Standard Sealface Combinations
| Rotary Face | Stationary Face | Complete Seal Code |
|---|---|---|
| Regular Carbon | Ceramic | CV |
| Silicon Carbide | Silicon Carbide | |
| Tungsten Carbide | Tungsten Carbide | UU |
Elastomer Temperature Capabilities
| Material | Minimum | Maximum |
|---|---|---|
| High Nitrile / NBR | -30°C | 120°C |
| EPDM | -40°C | 140°C |
| Viton/FKM | -30°C | 180°C |

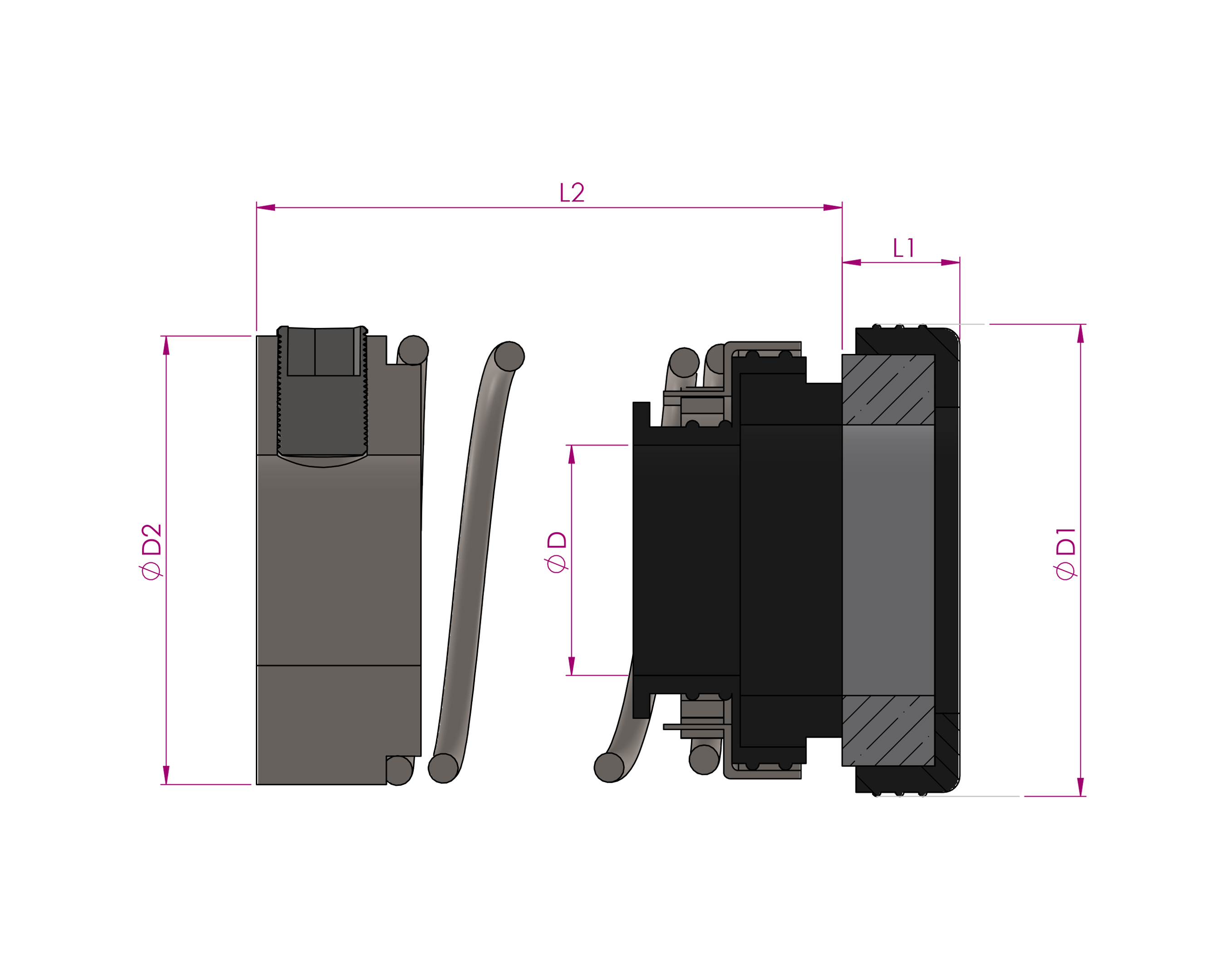

Dimensional Data
Dimensions
No dimensions available.
