TYPE SUO

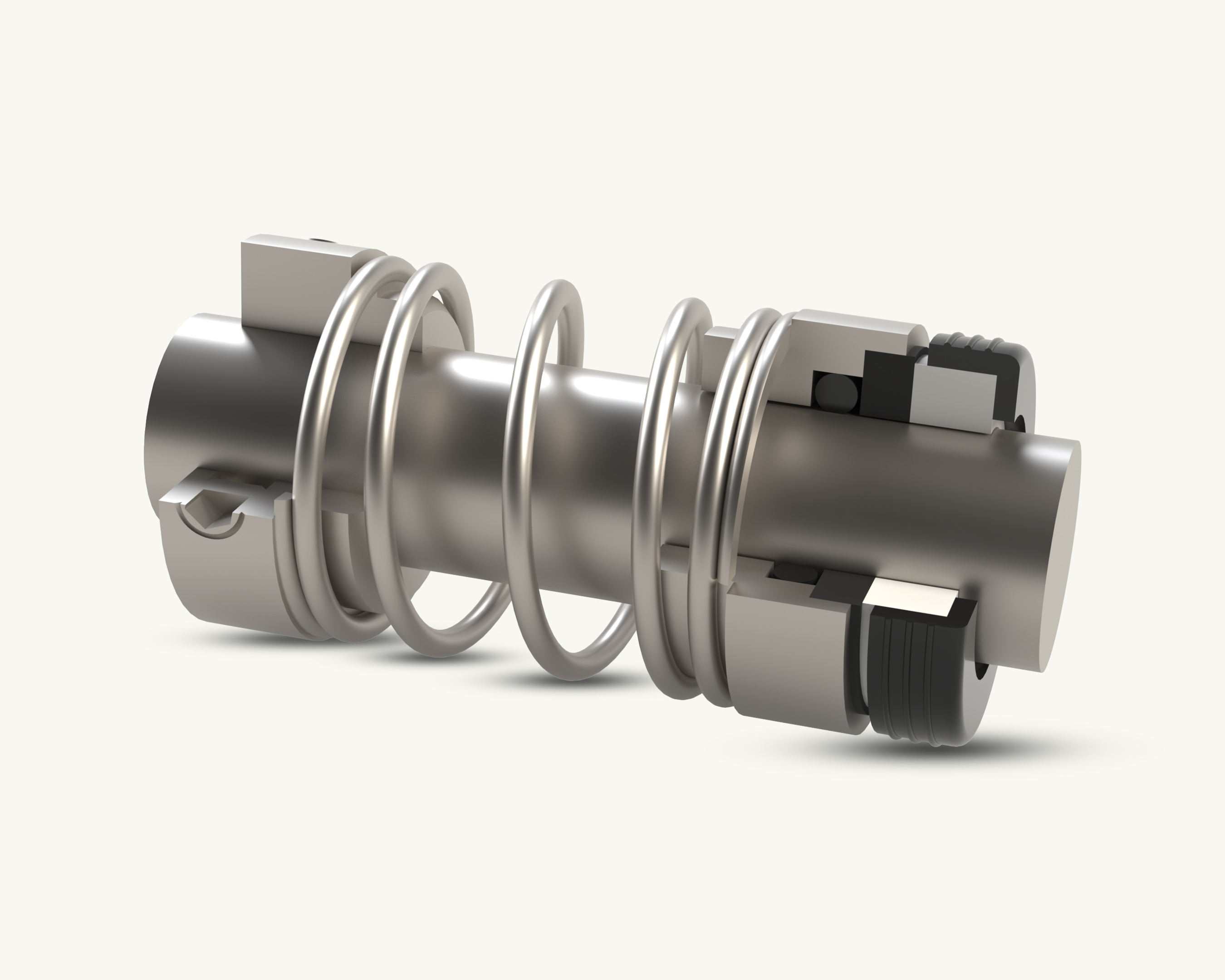

SUMO O-ring type mechanical seal. Pusher type design for general industrial applications. Reliable sealing for water and chemical service.
About this Product
Why Choose Sumo O-Ring? Robust O-ring secondary seal. Cost-effective for general duty applications. Suitable for water, oils and mild chemicals.
Technical Features
- Design: Pusher Type, O-Ring Mounted
- Balance: Unbalanced
- Spring: Single Conical Spring
Standard Sealface Combinations
| Rotary Face | Stationary Face | Complete Seal Code |
|---|---|---|
| Ceramic | Regular Carbon | VC |
| Silicon Carbide | Silicon Carbide | |
| Tungsten Carbide | Tungsten Carbide | UU |
Elastomer Temperature Capabilities
| Material | Minimum | Maximum |
|---|---|---|
| High Nitrile / NBR | -30°C | 120°C |
| EPDM | -40°C | 140°C |
| Viton/FKM | -30°C | 180°C |

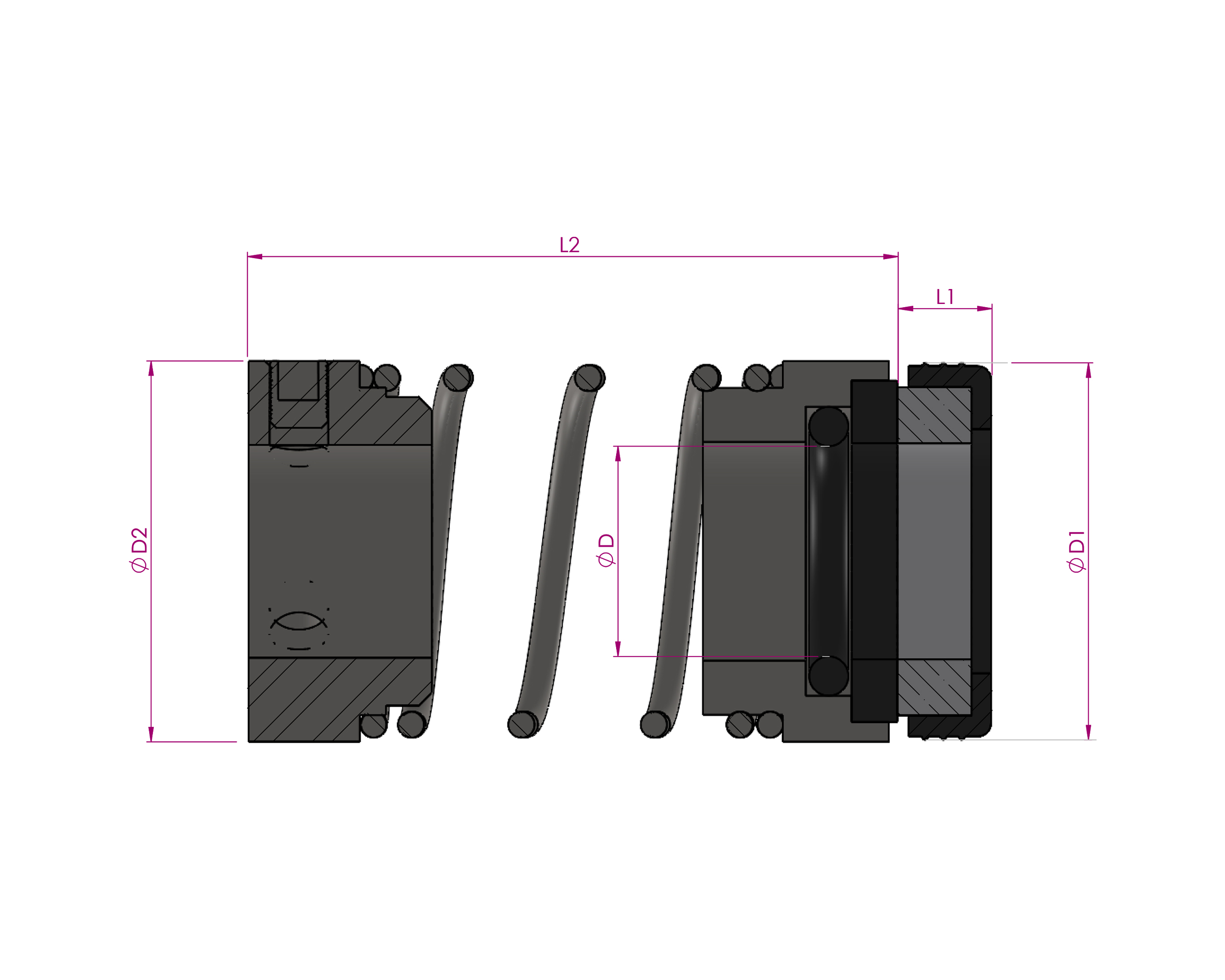

Dimensional Data
Dimensions
No dimensions available.
