TYPE 156

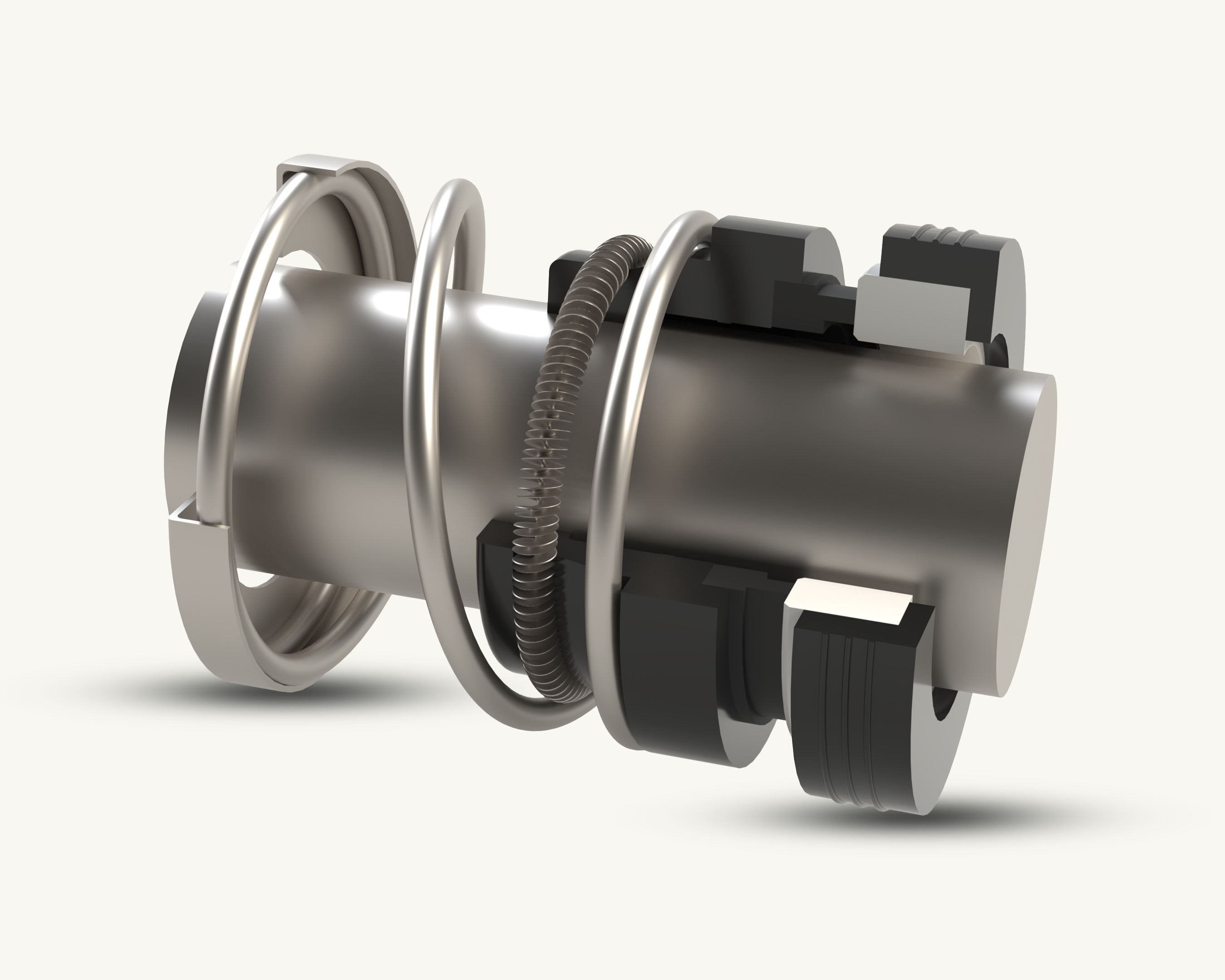

Type 156 conical spring O-ring mounted seal. Pusher type unbalanced seal. Suitable for light to medium duty pump applications.
About this Product
Why Choose Type 156? O-ring mounted seal face offers versatility. Cost-effective option for light duty applications. Suitable for water and mild chemical service.
Technical Features
- Design: Pusher Type, Unbalanced
- Spring: Single Conical Spring
- Type: O-ring Mounted
Standard Sealface Combinations
| Rotary Face | Stationary Face | Complete Seal Code |
|---|---|---|
| Ceramic | Regular Carbon | VC |
| Ceramic | Resin Carbon | VR |
| Silicon Carbide | Silicon Carbide |
Elastomer Temperature Capabilities
| Material | Minimum | Maximum |
|---|---|---|
| High Nitrile / NBR | -30°C | 120°C |
| EPDM | -40°C | 140°C |
| Viton/FKM | -30°C | 180°C |

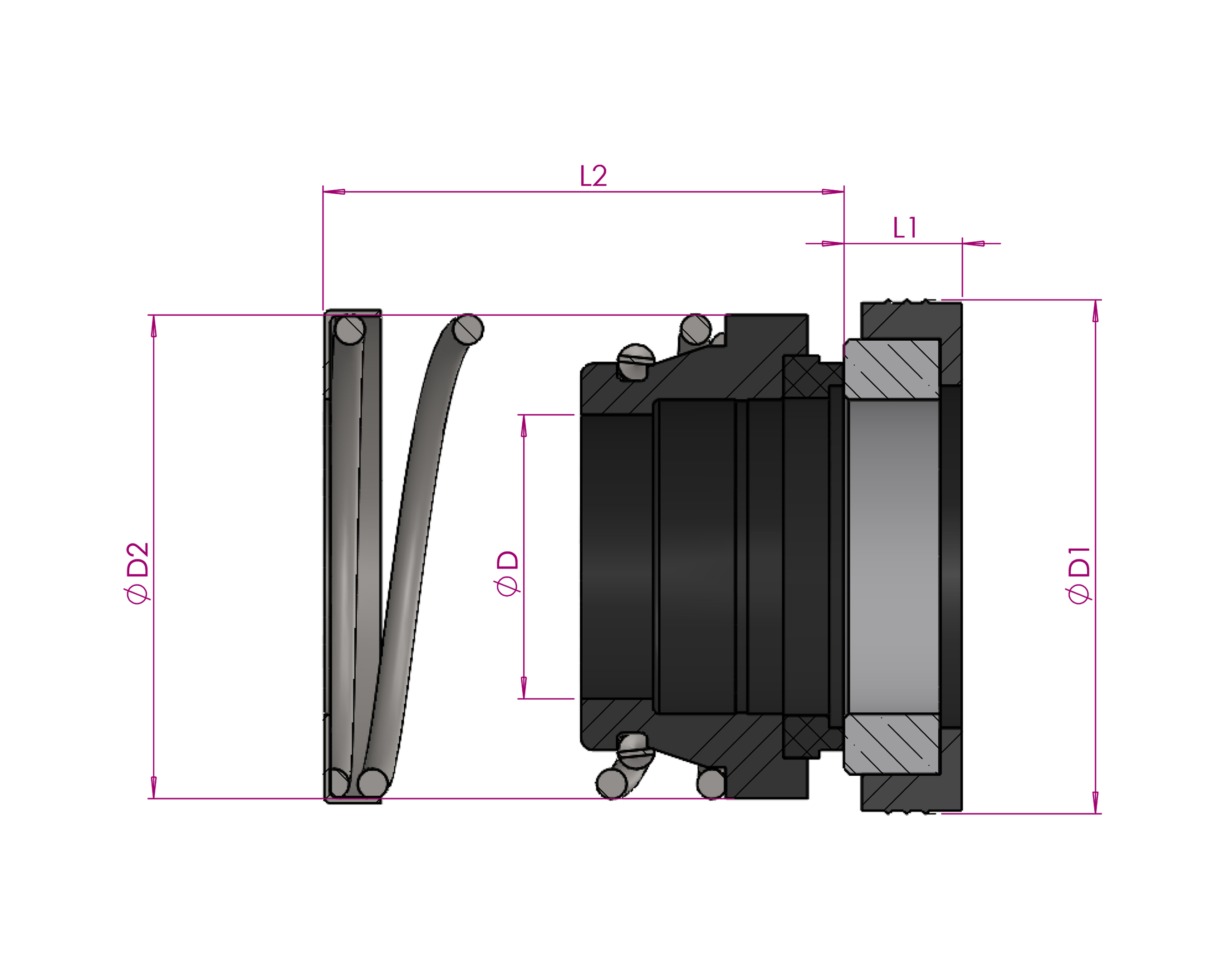

Dimensional Data
Dimensions
No dimensions available.
