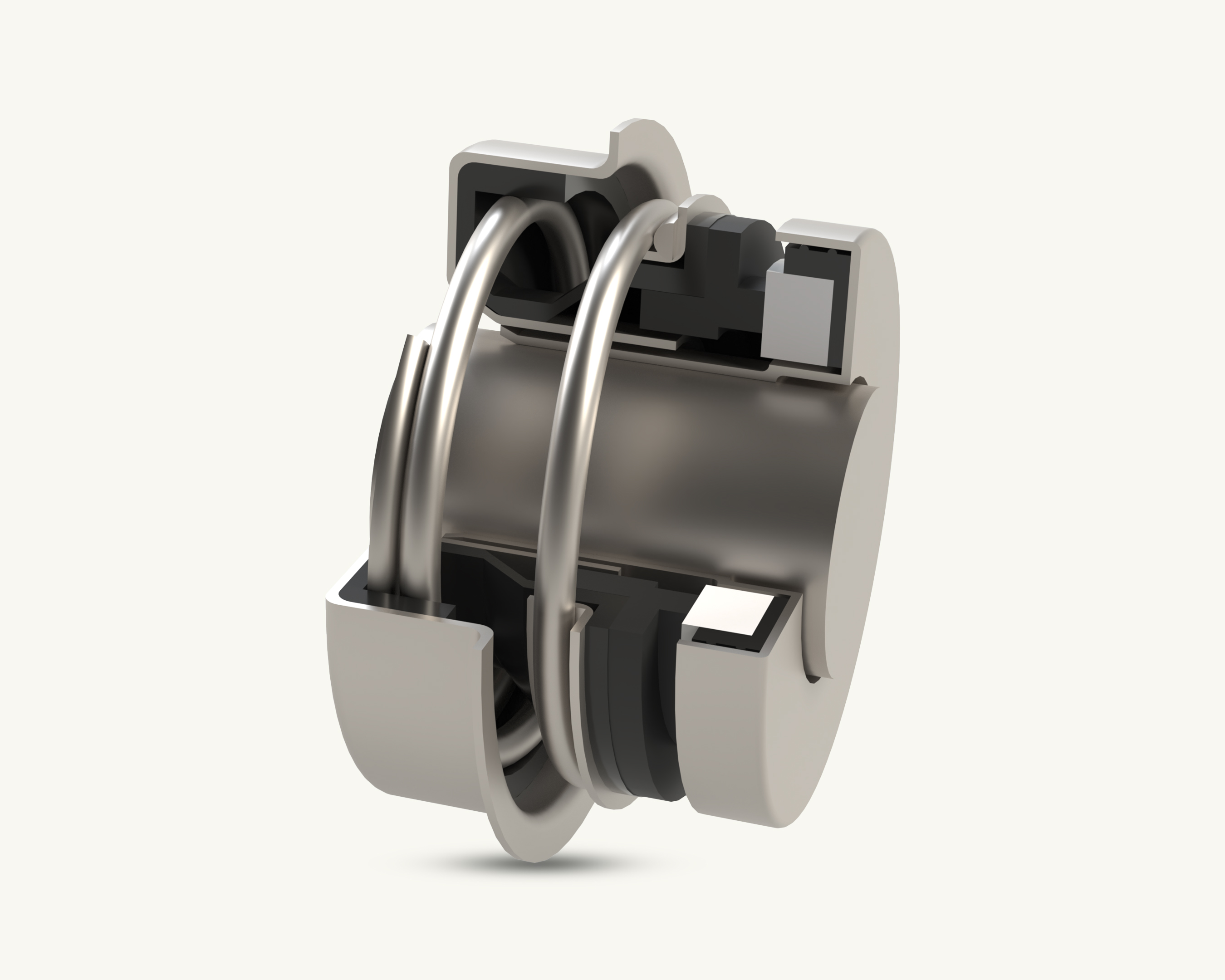

TYPE UHO
Unitised Honda type stationary-mounted compact elastomer bellows seal. Pre-assembled cartridge for ease of installation. High-speed water pump applications.
Why Choose Unitised Honda? Pre-assembled cartridge reduces installation errors. Boot-mounted design for high-shaft speed pumps. Bi-directional, no shaft contact.
- Design: Unitised Cartridge, Stationary spring-loaded
- Balance: Unbalanced
- Direction: Bi-directional, independent of rotation
| Rotary Face | Stationary Face | Complete Seal Code |
|---|---|---|
| Ceramic | Regular Carbon | VC |
| Ceramic | Resin Carbon | VR |
| Silicon Carbide | Silicon Carbide |
| Material | Minimum | Maximum |
|---|---|---|
| High Nitrile / NBR | -30°C | 120°C |
| EPDM | -40°C | 140°C |
| Viton/FKM | -30°C | 180°C |

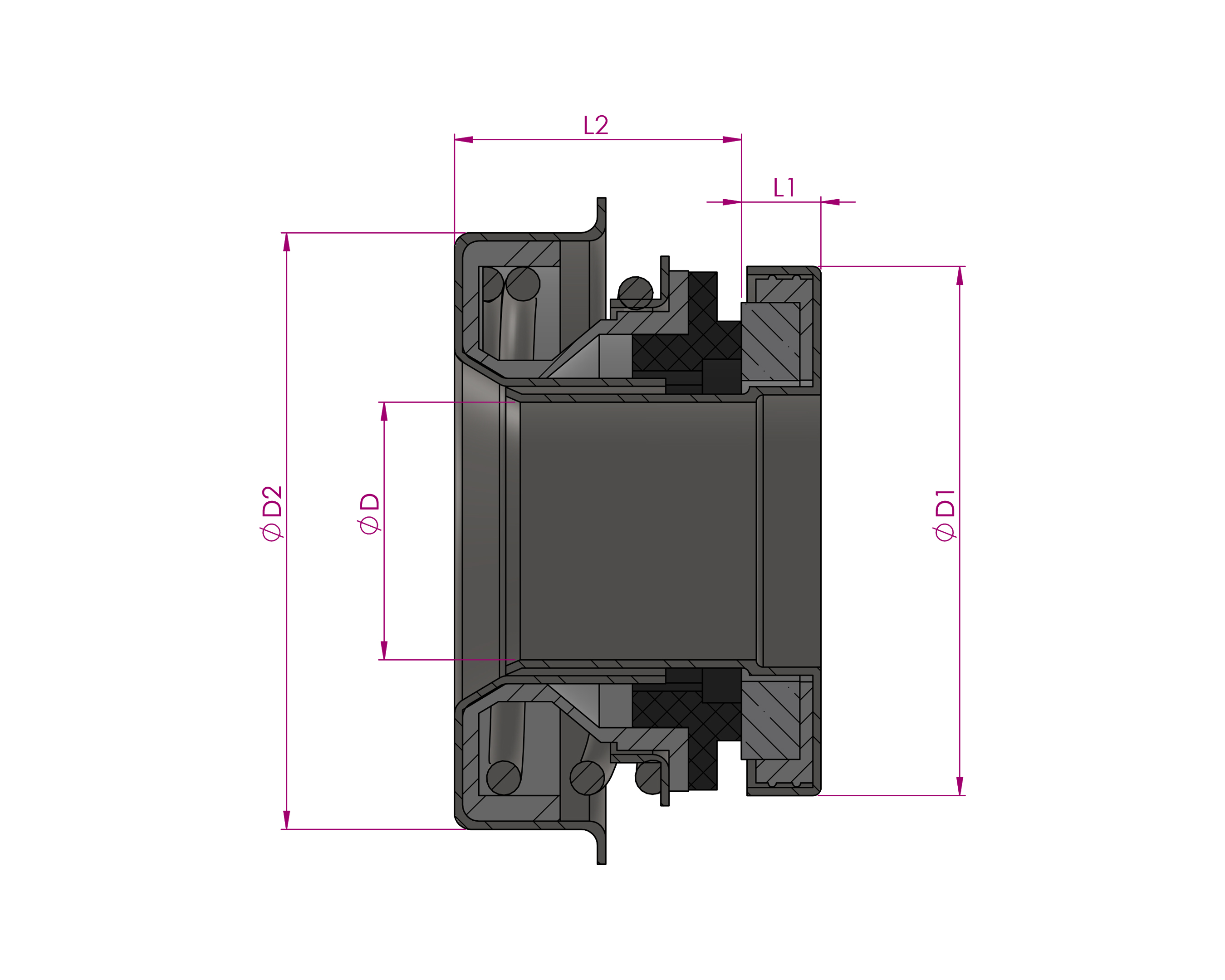

Dimensions
No dimensions available.
